Multi Headed Multi View Microscope Wide Field WF10X For Educational Teaching

Model Number : NCV-5010

Certification : CE

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000sets per month

Packaging Details : Carton

Head Number : Five

Eyepiece : Wide Field WF10×

Objective : Achromatic 4×, 10×,40×,100×

Nosepiece : Quadruple

Abbe Condenser : NA1.25

Pointer : Green LED Pointer

Illumination : S-LED

Model : S-LED

Contact Now

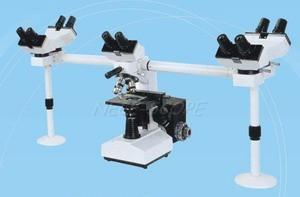

10pcs Eyepiece Five Heads NCV-5010 Multi View Microscope Educational Teaching

Description

Adopted 4pcs or 10pcs Wide Field Eyepiece WF10× for 2pcs or 5pcs viewing head, NCV-5010 Multi-viewing Microscope conveniet the observation for multi-persons at the same time. The microscope is equipped with five heads for five persons observing at the same time. Best for educational teaching or the multi-persons observation requirement at the same time.

Specification:

		NCV-2004	NCV-3004	NCV-5010
Viewing Head	Sliding Binocular Head, lnclined at 45°	2Pcs	1Pc	5Pcs
Viewing Head	Monocular Head, lnclined at 45°		2Pcs
Eyepiece	Wide Field Eyepiece WF10×	4Pcs	4Pcs	10Pcs
Nosepiece	Quadruple Nosepiece	●	●	●
Objective	Achromatic Objective 4×, 10×,40×,100×	●	●	●
Condenser	Abbe Condenser NA1.25	●	●	●
Focusing	Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm	●	●	●
Stage	Double Layers Mechanical Stage 140×140mm/ 75×50mm	●	●	●
lllumination	S-LED Illumination, Brightness Adjustable	●	●	●
	Halogen Lamp 6V/ 20W	○	○
	Halogen Lamp 24V/ 100W			○
Pointer	Green LED Pointer , Brightness Adjustable			●

Note: ●Standard Outfit, ○Optional

Sample:

Product Tags:

multi viewing microscope

multi headed microscope

Multi Headed Multi View Microscope Wide Field WF10X For Educational Teaching Images
